6.2kW Hybrid High Frequency Inverter – 48v

370,000 CFA

  • Item number: ES-REVO VM II PRO 6.2KW
  • Type: Off-grid hybrid inverter
  • Warranty: 5 years
  • Inverter Mode
  • Rated Power : 6200VA/6200W
  • Battery Input :48VDC , 140A
  • AC Output :230VAC , 50Hz/60Hz , 27A, 1ф
  • AC Charger mode
  • AC Input : 230VAC, 50Hz/60Hz , 50A
  • DC Output: 54VDC
  • Max. 80A, Default 30A
  • AC Output: 230VAC , 50Hz/60Hz , 27A
  • Solar Charge Mode:
  • Rated. Power : 7000W
  • Max. Solar Voltage (VOC): 500VDC
  • MPPT Voltage range: 90~450VDC
  • Max. PV input current (ISC) : 27A
  • Max. 120A, Default 60A
  • Download the technical specifications here.
Warranty

This Warranty Assurance Coverage Covers logistics and immediate replacement during the warranty period.

Free installation orders over 1,00000 CFA!

  • Check Mark Satisfaction Guaranteed
  • Check Mark Professional Installation
  • Check Mark Manufacturer Warranty
GUARANTEED SAFE CHECKOUT
  • PayPal

Description

  • Item number: ES-REVO VM II PRO 6.2KW
  • Type: Off-grid hybrid inverter
  • Warranty: 5 years
  • Inverter Mode
  • RateD Power : 6200VA/6200W
  • Battery Input :48VDC , 140A
  • AC Output :230VAC , 50Hz/60Hz , 27A, 1ф
  • AC Charger mode
  • AC Input : 230VAC, 50Hz/60Hz , 50A , 1 ф
  • DC Output: 54VDC
  • Max. 80A, Default 30A
  • AC Output: 230VAC , 50Hz/60Hz , 27A , 1 ф
  • Solar Charge Mode:
  • Rated. Power : 7000W
  • Max.Solar Voltage (VOC): 500VDC
  • MPPT Voltage range: 90~450VDC
  • Max. PV input current (ISC) : 27A
  • Max. 120A, Default 60A
  • Degree of protection: IP20
  • Protective Class: I
  • Download the technical specifications here.

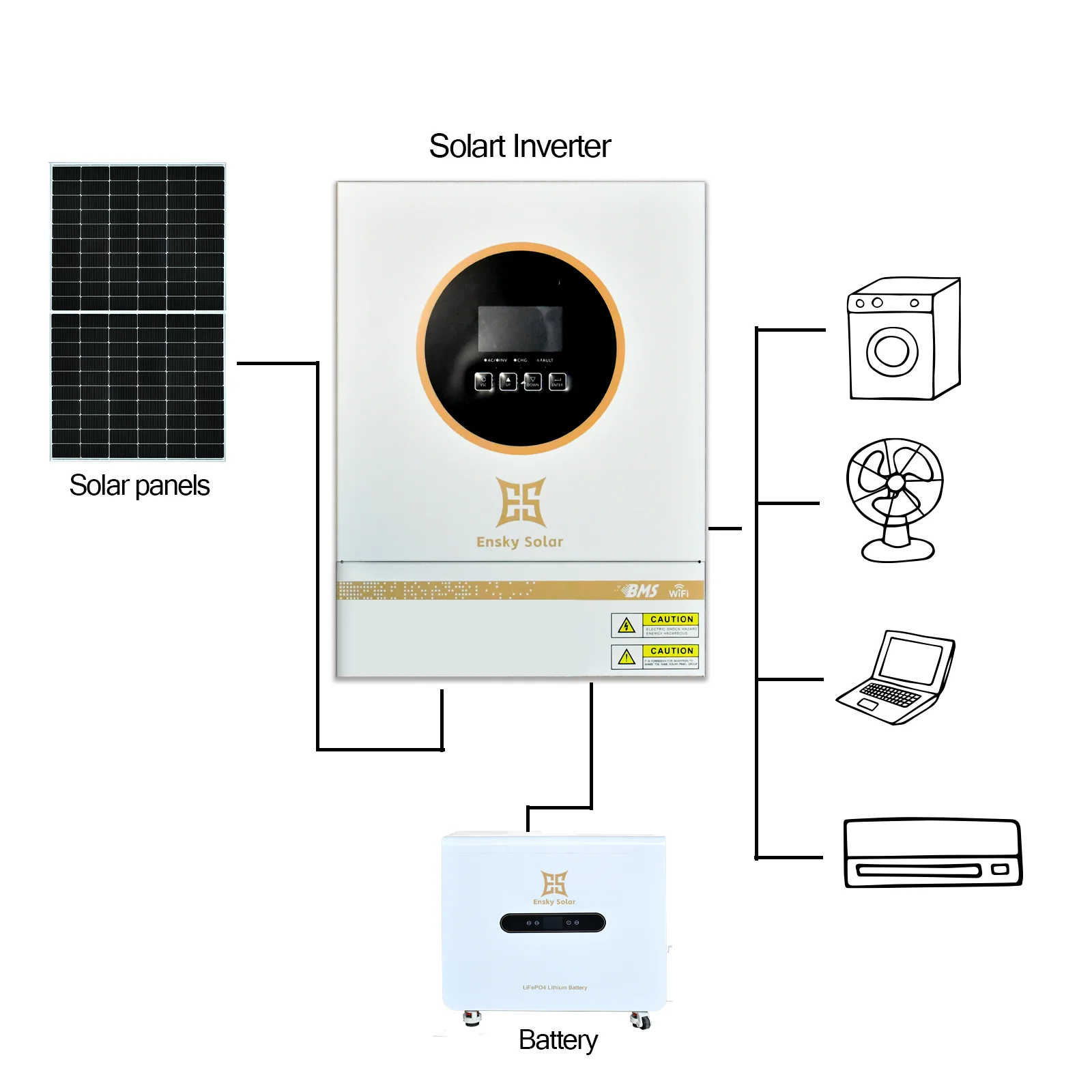

ENSKY REVO VM II PRO High Frequency Inverter – Hybrid Power for Your Solar System!

The ENSKY REVO VM II PRO series is available in several models: 6.2KW.

“They are ideal for off-grid applications and can also be configured for on-grid use as an option.”

“These hybrid inverters accept a wide PV voltage range (up to 500VDC) and have an integrated 80-120A MPPT charger.”

2. Key advantages

High performance: Efficiency up to 93% and pure sine wave.

Smart Load Management: Two smart outputs to prioritize loads (air conditioning, fridge, TV, lighting…).

Storage flexibility: Compatible with lithium and lead-acid batteries, and equalization function to extend battery life.

Advanced connectivity: RS485 and CAN communication ports for BMS, WiFi and Bluetooth option.

Safety and reliability: Protection against overvoltage, overheating and overcurrent.

3. Use Cases

“The REVO VM II PRO is suitable for:”

Detached houses

Offices and SMEs

Hybrid solar installations with grid or generator connection.

“Thanks to their intelligent design, you can power heavy appliances like air conditioning and refrigerators while optimizing solar consumption.”

4. Conclusion & Call-to-Action

“With the ENSKY REVO VM II PRO inverter, you benefit from a reliable, high-performance solution tailored to your energy needs.”
