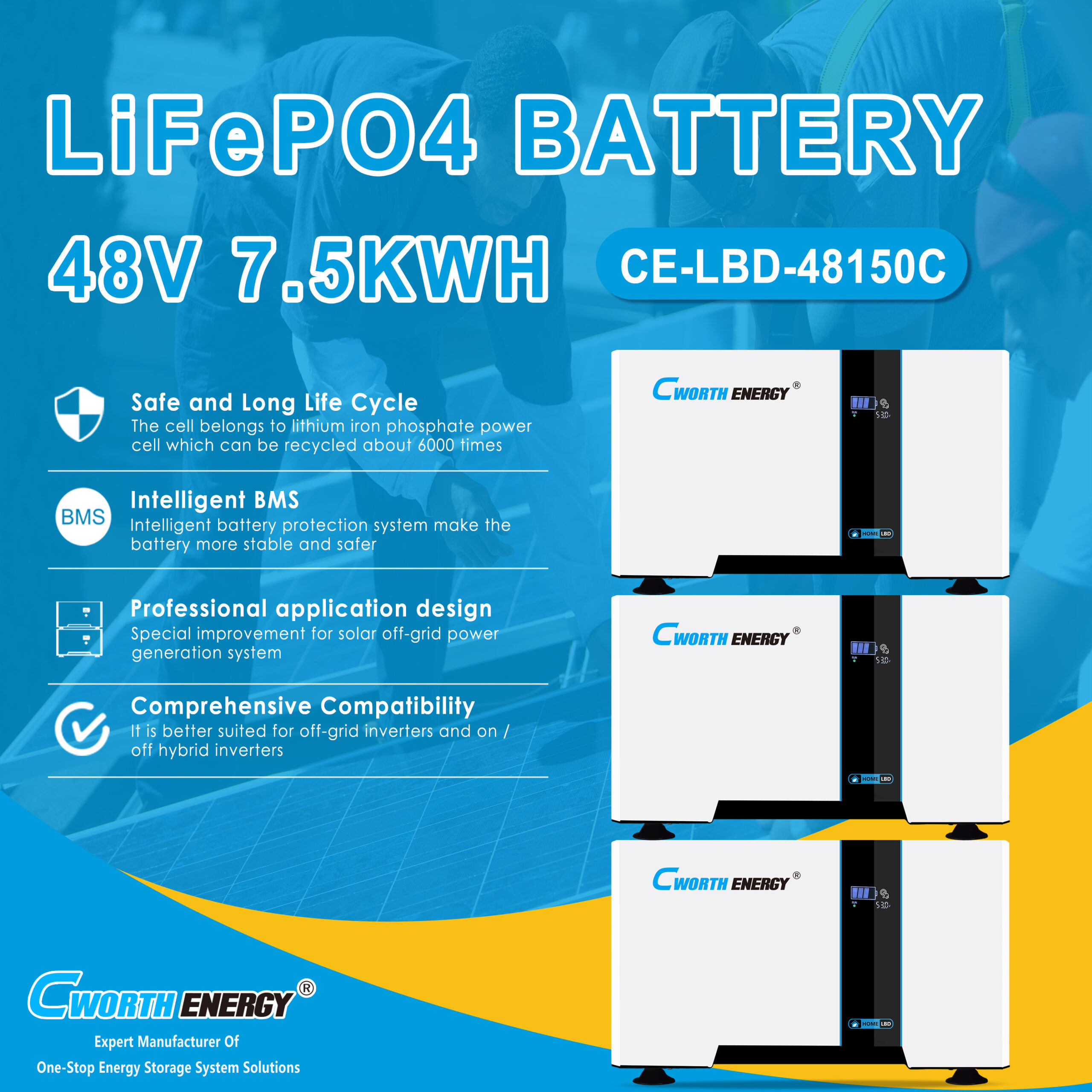

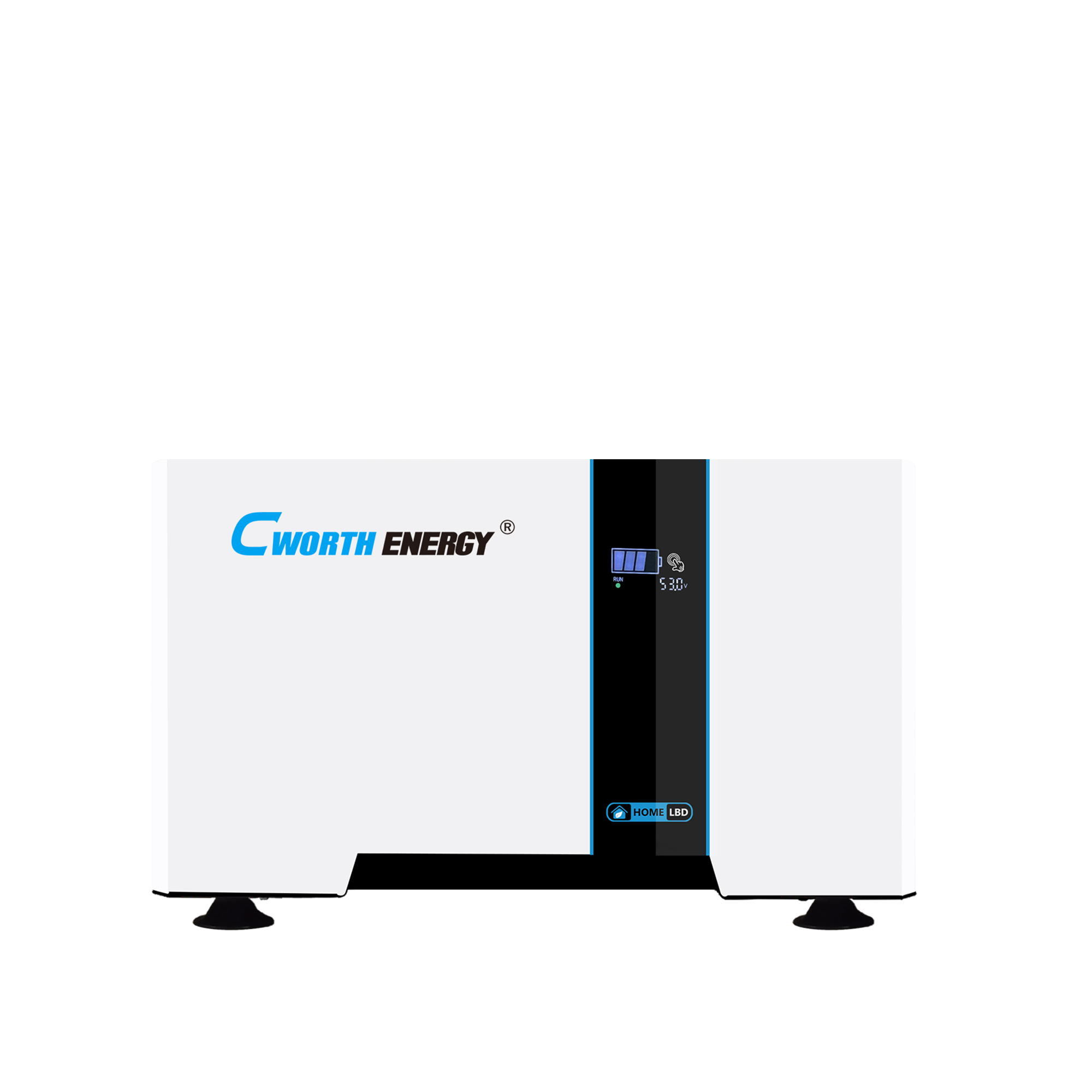

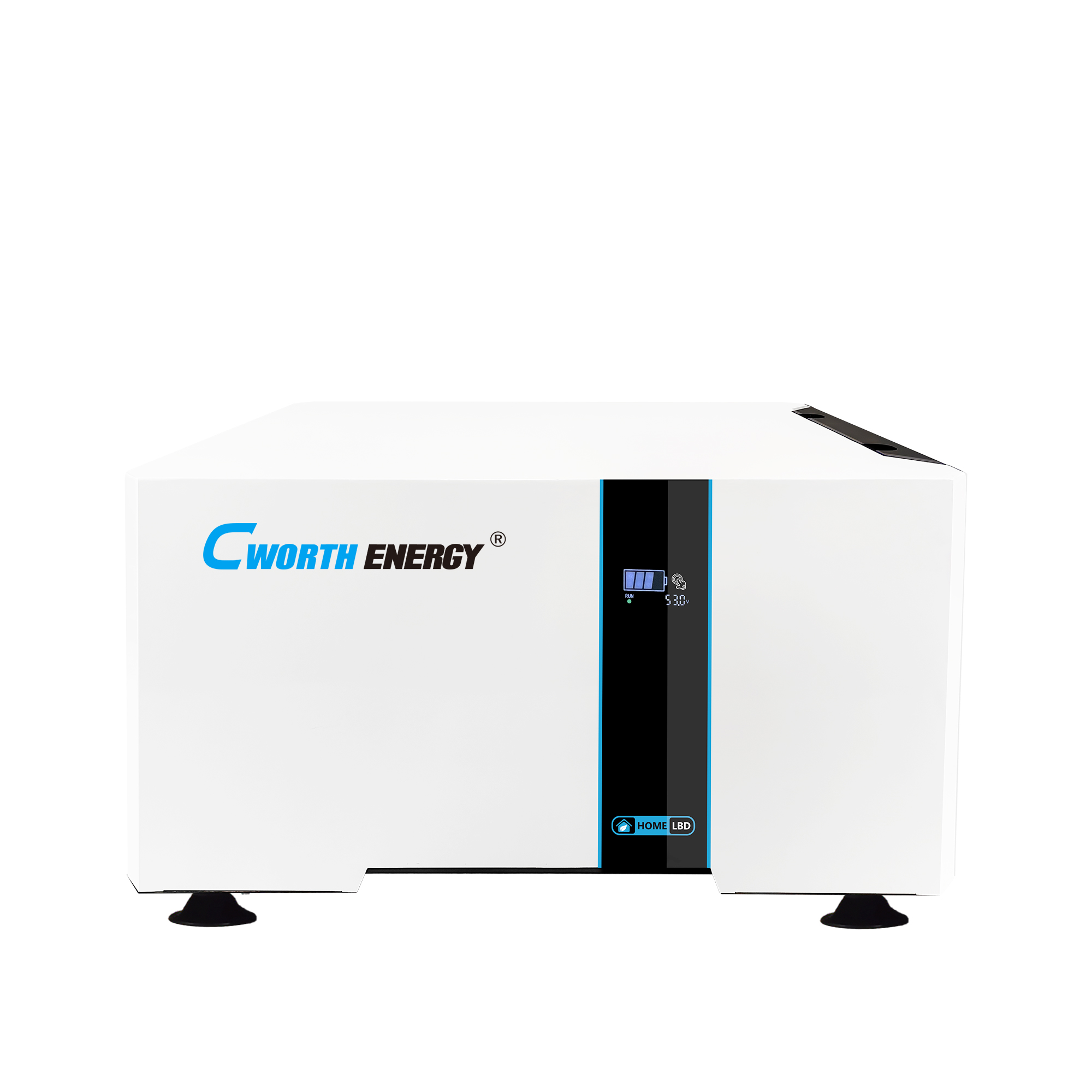

7.5kwh LiFePO4 Battery 48V LBD-48150C

875,000 CFA

CE-LBD-48150C is a specialized mid-range energy storage unit that fills the gap between 5kWh and 10kWh systems. Providing 7.5kWh of power, it is a high-capacity wall-mounted or floor-standing lithium battery designed for users who need more than a standard 100Ah unit but don’t want the full expense of a 200Ah module.

Warranty

This Warranty Assurance Coverage Covers logistics and immediate replacement during the warranty period.

Free installation orders over 1,00000 CFA!

  • Check Mark Satisfaction Guaranteed
  • Check Mark Professional Installation
  • Check Mark Manufacturer Warranty
GUARANTEED SAFE CHECKOUT
  • PayPal

Description

Specification:

Model CE-LBD-48150C
Capacity 7.5KWH
Voltage 48V
Normal voltage 51.2V
Normal voltage range 48-57.6V
Charge cut-off voltage 57.6V
Discharge cut-off voltage 48V
Max. Charge & discharge current 150A
Recommend Charge & discharge current ≤100A
Normal output power 5120W
Max. Output power 7680W
Parallel connection amount 1-6
Ingress protection IP21
Cycle times ≥6000@80% DOD, 25°C, 0.5C
Working temperature -10~60℃
Net weight 83.5kg
Product dimension 680*450*420mm
Cworth Energy CE-LBD-48150C LiFePO4 Battery (48V, 7.5kWh)

The Cworth Energy CE-LBD-48150C is a specialized mid-range energy storage unit that fills the gap between 5kWh and 10kWh systems. Providing 7.5kWh of power, it is a high-capacity wall-mounted or floor-standing lithium battery designed for users who need more than a standard 100Ah unit but don’t want the full expense of a 200Ah module.


Core Features & Benefits
  • Unique 7.5kWh Capacity: Most lithium batteries come in 5kWh or 10kWh sizes. The 7.5kWh (150Ah) capacity is perfect for users who find 5kWh too small for their nighttime loads but find 10kWh over-budget.

  • Exceptional Lifespan: With 6,000+ cycles, this battery is built to last 10–15 years. This makes it far more cost-effective than replacing Gel batteries every few years due to heat.

  • High Output Power: Capable of delivering up to 7.6kW of peak power, it can easily handle the startup current of multiple refrigerators and one medium-sized inverter-style air conditioner.

  • Built-in Smart BMS: The advanced Battery Management System monitors cell health, protects against overcharging, and ensures safe operation during the hot season.

  • IP21 Protection: Features a robust casing that protects against dust and vertical water drops, ensuring the internal electronics stay safe in typical utility room environments.

  • Fast Recharging: High-current charging support allows this battery to be fully charged from solar in just 3–4 hours of good sunlight.


Best Use Case: “The Balanced Household”

The LBD-48150C is the ideal “bridge” battery:

  • Ideal Pairing: Pairs perfectly with the CE-H6K or CE-H6K-ECO hybrid inverters.

  • What it Runs: It can easily power a 3-bedroom house through the night, including a deep freezer, a large fridge, LED lighting, and security systems with plenty of reserve.

  • Installation Tip: Due to its weight (83.5 kg), it is best placed on a stable floor-standing rack or a very secure concrete floor. Ensure the DC cables are at least 50mm² to handle the 150A potential current flow.
